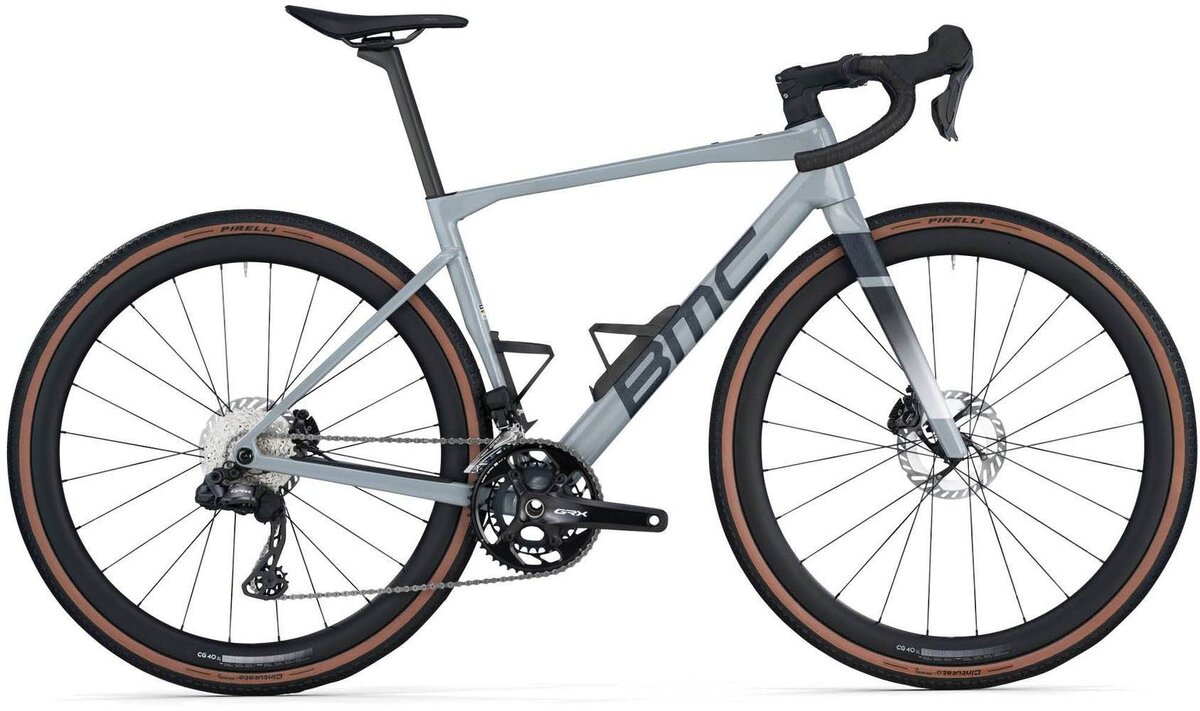

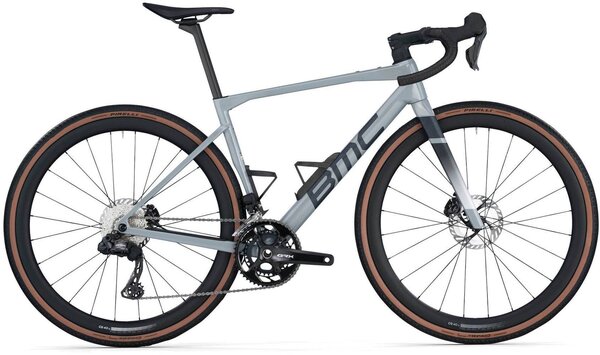

BMC Kaius 01 THREE

BMC Kaius 01 THREE
$7,000.00
Color: Stone Grey
Size: Select size
Please select options Unavailable
This item is not permitted to be shipped, however it can be purchased online and picked up at one of our stores.

Details

Kaius 01 THREE brings gravel racing to its peak. Equipped with Shimano GRX Di2 and our CG 40 SL carbon wheels, it's built for tough terrains and podium finishes.

Engineered by BMC's Impec Lab with advanced premium composite carbon technology, the Kaius 01 THREE is the ultimate gravel-racing machine. Built on a race-optimized geometry, it delivers the ideal balance of stiffness, lightness, and compliance, maximizing traction on loose terrain, front-end stability, and climbing efficiency. Our ICS cable integration and Aerocore design make it one of the fastest bikes ever crafted for gravel racing. Outfitted with Shimano GRX Di2 and CG 40 SL carbon wheels, the Kaius 01 THREE is ready to elevate your speed and performance on every ride.

Size475154565861
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 390 397 401 405 410 414
Stack 510 530 550 570 595 620
Bar Drop 125 125 125 125 125 125
Bar Reach 70 70 70 70 70 70
Bar Width 390 390 390 410 410 430
BB Drop 80 80 80 80 80 80
Crank Length 170 170 172.5 172.5 175 175
Fork Length 387 387 387 387 387 387
Fork Rake 50 50 45 45 45 45
Front Center 596 610 608 619 632 644
Head Tube 85 106 123 144 170 196
Head Tube Angle 71 71 72 72 72 72
Rear Center 420 420 420 420 420 420
Seat Angle 73 73 73 73 73 73
Seat Tube 428 452 468 493 513 533
Seatpost Length 280 320 360 360 400 400
Seatpost Offset 15 15 15 15 15 15
Standover Height 684 722 756 780 798 818
Stem Angle -4.0 -4.0 -4.0 -4.0 -4.0 -4.0
Stem Length 80 90 90 100 100 110
Top Tube 546 559 569 579 592 604
Trail 68 68 68 68 68 68
Wheelbase 1003 1017 1015 1026 1039 1051

Tire Clearance:
44mm

Weight without Pedals:
8.3 Kg

ASTM Classification:
Level 2

System Weight Limit:
120kg

Specs

Frame Kaius 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | UDH Dropout (Universal Derailleur Hanger) | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork Kaius 01 Premium Carbon | ICS Technology, Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Rims/Wheels CG 40 SL Carbon | Tubeless Ready | 40mm
Hubs CG 40 SL
Tires Pirelli Cinturato Gravel H | 40mm
Crankset SHIMANO GRX (FC-RX820-2)
Chainwheel 48-31T
Bottom Bracket SHIMANO Press Fit SM-BB72
Chain SHIMANO CN-M8100
Front Derailleur SHIMANO GRX Di2 (FD-RX825)
Rear Derailleur SHIMANO GRX Di2 (FD-RX825)
Rear Cogs SHIMANO Ultegra (CS-R8101) 11-34
Shifters SHIMANO GRX Di2 (FD-RX825)
Handlebars BMC HB D4 03, 0, 12 | Alloy 6061 | 125mm drop, 70mm reach, 12° flare
Stem BMC RSM 01 | Integrated Cockpit System Technology
Brakes SHIMANO GRX (BR-RX820)
Saddle Fizik Vento Argo X3 | Kium rails | 140mm
Seat Post Kaius 01 Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
Accessories & Extras 4iiii Precision Gen3+ Power Meter (Non-Drive Side), Aerocore Design Carbon Bottle Cages

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Stone Grey / 51 7630906521731 30006872 210000179652
Stone Grey / 54 7630906521724 30006873 210000179653
Stone Grey / 56 7630906521717 30006874 210000179654
Stone Grey / 58 7630906521700 30006875 210000179655
