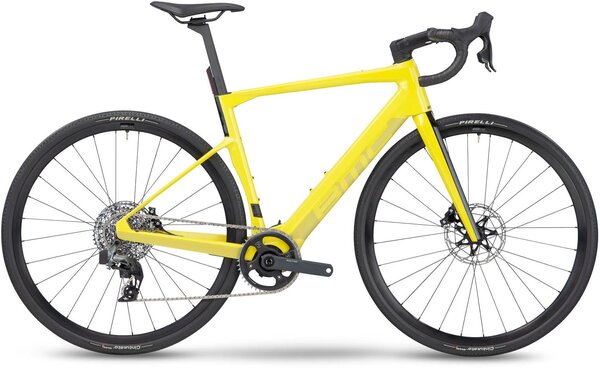

BMC Roadmachine 01 AMP X TWO

BMC Roadmachine 01 AMP X TWO
$7,965.00
Color:
Yellow/Black/Black
Size:
47
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up at one of our stores.

Details

Amplify your endurance ride with the all-new Roadmachine 01 AMP X, a road e-bike built to extend your reach. It unlocks hidden power thanks to the revolutionary TQ-HPR50 drive system and features a premium carbon frame and fork designed with the latest Tuned Compliance Concept Endurance technology. Internal cable routing, a premium carbon D-Shape seatpost, wide tire clearance and advanced ICS MTT x Redshift Suspension stem provide comfort over the rough stuff. Choose your own path with Roadmachine 01 AMP X TWO and the SRAM Rival XPLR eTap AXS 12-speed groupset, 35mm Pirelli Cinturato Gravel H tires and powerful TQ-HPR50 drive unit.

Size475154565861
Rider Height CM <162 162-174 172-180 178-186 184-192 >190
Stack MM 525 550 570 595 620 645
Reach MM (reach) 370 379 383 388 393 398
Seat Tube MM (st) 420 460 500 525 545 575
Top Tube MM (tt) 519 535 544 556 568 581
Head Tube MM (ht) 112 138 154 181 207 233
Seat Tube Angle (sa) 74.2 74.2 74.2 74.2 74.2 74.2
Head Angle (ha) 71.4 71.4 72.2 72.2 72.2 72.2
Rear Center MM (rc) 415 415 415 415 415 415
Front Center MM (fc) 579 596 594 607 620 633
Wheelbase MM (wb) 982 1000 997 1010 1023 1036
BB Drop MM (drop) 75 75 75 75 75 75
Fork Length MM (fl) 380 380 380 380 380 380
Fork Rake MM (fr) 50 50 45 45 45 45
Trail MM (trail) 63 63 63 63 63 63
Crank Length MM 170 170 170 170 170 170
Stem Length MM 90 90 100 110 110 120
Stem Angle -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
Bar Width MM 400 420 420 420 420 440
Bar Drop MM 125 125 125 125 125 125
Bar Reach MM 70 70 70 70 70 70
Post Offset MM 15 15 15 15 15 15
Standover Height mm 728 755 786 810 829 850
Seatpost Length MM 330 380 380 380 380 430

Specs

Frame Roadmachine 01 AMP X Premium Carbon with Tuned Compliance Concept Endurance • Integrated Battery • Integrated Rear Light • Internal Cable Routing • Flat Mount Disc • 12x142mm Thru-Axle
Fork Roadmachine 01 AMP X Premium Carbon with Tuned Compliance Concept Endurance • Internal Cable Routing • Flat Mount Disc • 12x100mm Thru-Axle
Rims/Wheels XRD-522, Tubeless Ready, 25 mm
Hubs XRD-522
Tires Pirelli Cinturato Gravel H, 35mm
Crankset Rotor eVegast
Chainwheel SRAM X-Sync 44T
Chain SRAM RIVAL 12 Speed
Rear Derailleur SRAM Rival XPLR eTap AXS
Rear Cogs SRAM RIVAL AXS XPLR XG-1251 10-44T
Shifters SRAM Rival eTap AXS
Handlebars BMC RAB 02, Ergo Top Shape, Compact Bend
Stem ICS MTT x Redshift Suspension Stem, Integrated Cockpit Design
Brakes SRAM Rival eTap AXS HRD, Centerline X Rotors (180/180)
Saddle Fizik Terra Argo X5 (150mm)
Seat Post Roadmachine 01 AMP X Premium Carbon D-Shaped Seatpost • 15mm Offset
Accessories & Extras TQ-HPR50 Drive Unit

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Yellow/Black/Black / 47 7630027888294 30002777 210000163347
