Otso Waheela C Frameset

Otso Waheela C Frameset
  • Color: Gloss Copper/Black
  • Color: Gloss Goldenrod/Yellow
  • Color: Gloss Turquoise/Teal
  • Color: Matte Olive/Black
  • Color: Matte Slate/Gray
$2,700.00
Color:
Size: Select size
Please select options Unavailable
This item is not permitted to be shipped, however it can be purchased online and picked up at one of our stores.

Details

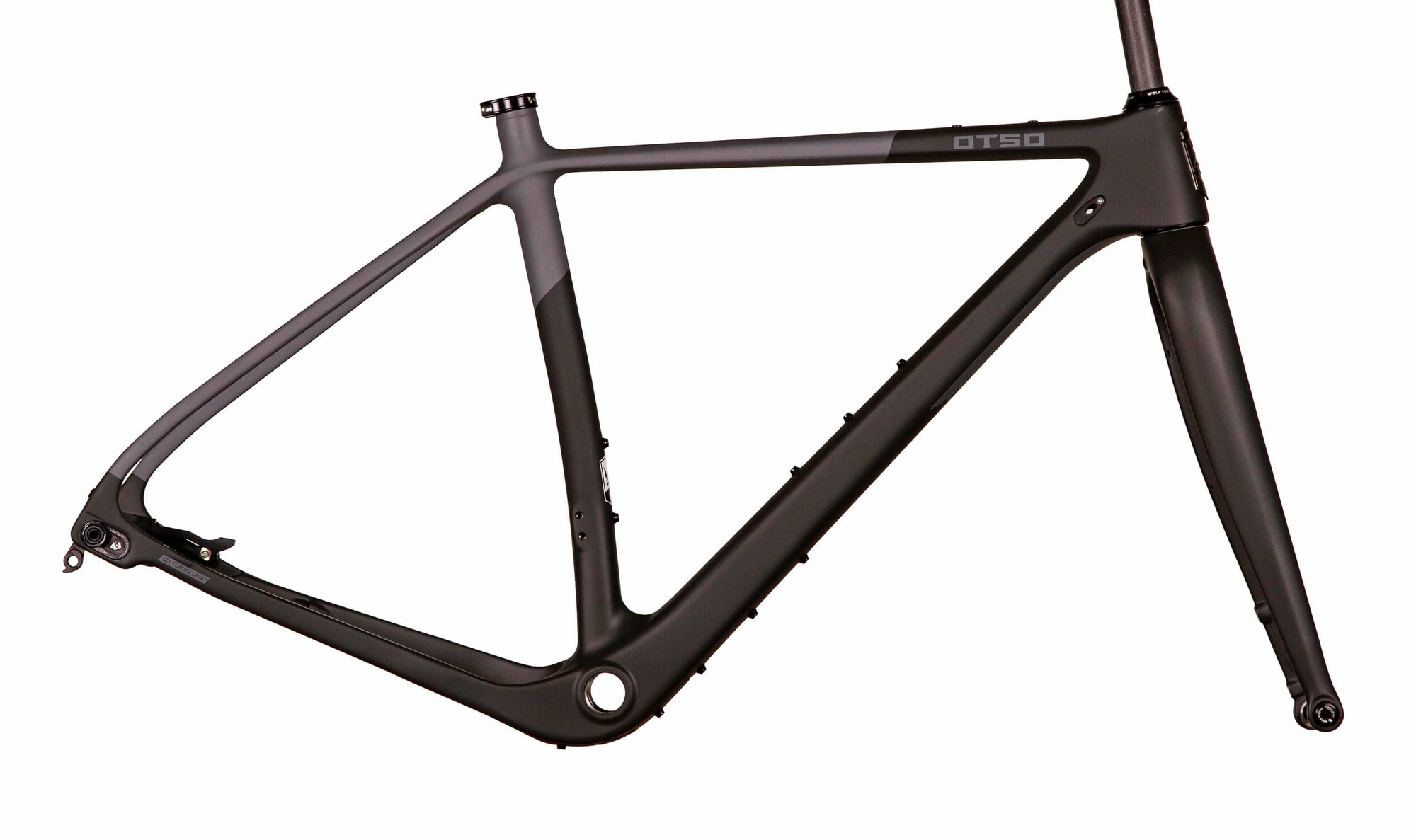

The Waheela C is a carbon-framed drop bar bike with adjustable geometry, unrivaled ride quality, and enormous tire clearance for 700c x 54mm, 650b x 54mm, or 29" x 2.1" tires. It has extra frame and fork mounting points for bottles and racks, easily accessible internal cable routing options, compatibility for 1x or 2x electronic or mechanical drivetrains, and the ability to run a dropper post. No matter the road ahead (or under the tire), the Waheela C is ready.

GIANT TIRE CLEARANCE
Gravel comes in all shapes and sizes, from the packed limestone of Southeast Minnesota to the chunky roads of the Flint Hills of Kansas. The Waheela C is equipped with tire clearance to handle the terrain of your next race. Where most gravel bikes can fit 650b x 50mm but only 40mm with bigger wheels, the Waheela C keeps on rolling, with space for 700c x 54mm tires. It'll run 700c x 35mm when the roads are tacky and tidy, 700c x 42mm when there's a bit more uncertainty, 700c x 54mm when the gravel road turns to ATV trails, and anything in between. The Waheela C can also fit 29" x 2.1", 27.5" x 2.1", or 650b x 54mm if 700c isn't really your thing. In short, the Waheela C is ready for the road ahead.

ADJUSTABLE GEOMETRY
Like all Otso bikes, the Waheela C sports our patented Tuning Chip rear dropout system, which allows you to change the length of your wheelbase and the height of your bottom bracket. Put the Tuning Chip in the back position to get the stability and comfort of a longer wheelbase for a full day of riding gravel. Switch to the front position to get the agile handling and responsiveness required by your next CX race. And the middle position? That's the best of both worlds. The adjustable geometry of the Waheela C allows you to ride any road or any trail without needing to switch bikes.

UNRIVALED RIDE QUALITY
Our proprietary Waheela geometry was developed by our engineers for stability, confidence, and comfort on rough terrain. Where many gravel bikes put extra weight on the front wheel, the Waheela C centers the rider over both wheels. This makes for a more stable ride while allowing the compliant rear triangle to come into play and absorb the bumps of a gravel road. Meanwhile, the lightweight EPS molded carbon frame adds responsiveness and readiness for a sprint up that next hill. After a long day on the saddle, you'll find yourself adding a healthy amount of miles to tomorrow's ride.

EXTRA MOUNTING POINTS
Waheela C features fork bottle bosses, extra down tube mounting points (6 total), as well as top tube gas tank mounting points. Numerous braze-ons allow Waheela C to accommodate water bottles, fenders, racks, frame bags, and more.

DETAILS THAT MATTER
Internal brake and shifter routing with sleeves, carbon access door under the bottom bracket for easier routing, front and rear thru-axle, and threaded bottom bracket for reliable, easy service. This also allows you to run that dropper post you've been dreaming about.

COMPATIBLE WITH 1X OR 2X
Waheela C is 1x and 2x compatible with mechanical and electronic drivetrains. It's also fully compatible with both Shimano Di2 and SRAM eTap AXS, in case you don't want to take advantage of internal routing options.

QUALITY ASSURED
Designed by the Otso engineering team, Waheela C frames are manufactured in one of the premier carbon fiber factories in Taiwan and come with a 5-year limited warranty. All bikes are inspected and assembled at our headquarters in Minneapolis, MN USA.

Sizes:
Frame SizeSMLXL
Effective top tube546mm 560mm583mm605mm
Nominal head tube angle71° 71.5°71.5°71.5°
Tuning Chip induced head/seat tube angle change±0.2° ±0.2°±0.2°±0.2°
Head tube length94mm 107mm149mm191mm
Nominal seat tube angle72.5° 72.5°72.5°72.5°
Seat tube length475mm 510mm540mm570mm
Bottom bracket drop68-72mm 68-72mm68-72mm68-72mm
Chainstay length420-440mm 420-440mm420-440mm420-440mm
Wheelbase1008 - 1028mm 1015-1035mm1039-1059mm1062-1082mm
Trail71mm 68mm68mm68mm
Fork offset47mm 47mm47mm47mm
Rigid fork axle to crown length420mm 420mm420mm420mm
Stack541mm 555mm595mm635mm
Reach375mm 385mm395mm405mm
Standover737mm 765mm798mm831mm
Sizes:
Frame SizeRecommended rider heightRecommended rider inseam
S5'2"-5'7" 29"-32"
M5'6-5'11" 30"-34"
L5'10"-6'3" 33"-35"
XL6'2"-6'6" 34"-37"

Specs

Pedals Sold Separately
Fork Lithic Hiili carbon fork with triple mounts, 12mm thru-axle
Frame Carbon with Tuning Chip® dropout system
Headset Wolf Tooth Performance Headset, ZS44/ZS56

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Copper/Black / X-Large 10764333195150 WAH-COPP-FRMST-XL
Gloss Goldenrod/Yellow / Small 10764333195167 WAH-GOLDN-FRMST-S
Gloss Goldenrod/Yellow / Medium 10764333195174 WAH-GOLDN-FRMST-M
Gloss Goldenrod/Yellow / Large 10764333195181 WAH-GOLDN-FRMST-L
Gloss Goldenrod/Yellow / X-Large 10764333195198 WAH-GOLDN-FRMST-XL
Gloss Turquoise/Teal / Medium 10764333195051 WAH-TURQ-FRMST-M
Gloss Turquoise/Teal / X-Large 10764333195075 WAH-TURQ-FRMST-XL
Matte Olive/Black / Small 10764333195204 WAH-OLIV-FRMST-S
Matte Olive/Black / Medium 10764333195211 WAH-OLIV-FRMST-M
Matte Olive/Black / Large 10764333195228 WAH-OLIV-FRMST-L
Matte Olive/Black / X-Large 10764333195235 WAH-OLIV-FRMST-XL
Matte Slate/Gray / Large 10764333195020 WAH-SLAT-FRMST-L
Matte Slate/Gray / X-Large 10764333195037 WAH-SLAT-FRMST-XL
