Details

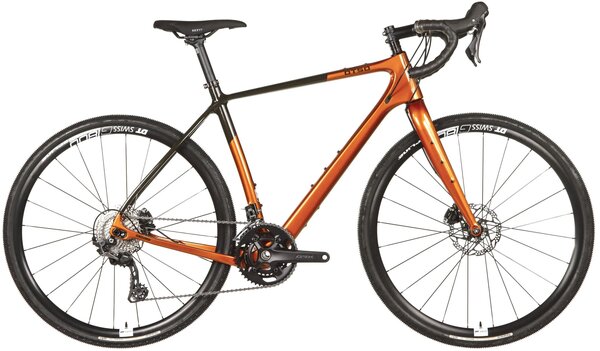

Gravel comes in all shapes and sizes, and the Waheela is ready for it all. The Waheela C is equipped with tire clearance to handle all types of terrain with space for 700c x 54mm tires.The Waheela C can also fit 29" x 2.1", 27.5" x 2.1", or 650b x 54mm according to preference.

The geometry of the Waheela was developed for stability, confidence, and comfort on rough terrain. The bike centers the rider over both wheels making for a more stable ride, while allowing the compliant rear triangle to absorb the bumps of a gravel road. The lightweight molded carbon frame adds responsiveness and readiness for speed, cornering, and hill-climbing .

The Waheela C comes with a 5 year limited warranty to assure that you can keep saying "weeee" on your rides for years.

*Components may be different than shown in images. Call or come in to see the custom configuration we carry at this time.

Extra Mounting Points

Waheela C features fork bottle bosses, extra down tube mounting points (6 total), as well as top tube gas tank mounting points. Numerous braze-ons allow Waheela C to accommodate water bottles, fenders, racks, frame bags, and more.

Details That Matter

Internal brake and shifter routing with sleeves, carbon access door under bottom bracket for easier routing, front and rear thru-axle, and threaded bottom bracket for reliable, easy service. This also allows you to run that dropper post you've been dreaming about.

Compatible With 1X or 2X

Waheela C is 1x and 2x compatible with mechanical and electronic drivetrains. It's also fully compatible with both Shimano Di2 and SRAM eTap AXS, in case you don't want to take advantage of internal routing options.

Quality Assured

Designed by the Otso engineering team, Waheela C frames are manufactured in one of the premiere carbon fiber factories in Taiwan and come with a 5 year limited warranty. All bikes are inspected and assembled at our headquarters in Minneapolis, MN USA.

Specs

Frame	Carbon with Tuning Chip® dropout system
Fork	Lithic full carbon fork, 12mm thru-axle
Headset	Wolf Tooth Precision Headset
Rims/Wheels	DT Swiss C 1800 SPLINE, 100x15mm front and 142x12mm rear hub spacing
Tires	Panaracer Gravel King SK 700x38
Crankset	Shimano GRX 600, 46/30t: 170mm S; 172.5mm M, L; 175mm XL
Bottom Bracket	Shimano english thread BSA, Ø68mm
Chain	Shimano HG-11X
Front Derailleur	Shimano GRX, braze-on mount
Rear Derailleur	Shimano GRX 810, 11 speed
Shifters	Shimano GRX 600 mechanical, 11 speed
Handlebars	Lithic Corundum aluminum compact drop with 16° flare
Tape/Grips	Cork handlebar tape, black
Stem	6061 aluminum
Brakes	Shimano GRX 600 Hydraulic
Saddle	WTB Volt 142mm, Custom for Otso
Seat Post	6061 aluminum
Sizes	S, M, L, XL
Weight	Weight (size M) 20.6 lbs (9.3kg) set up tubeless
