Otso Warakin Steel GRX 600 1x12
Details

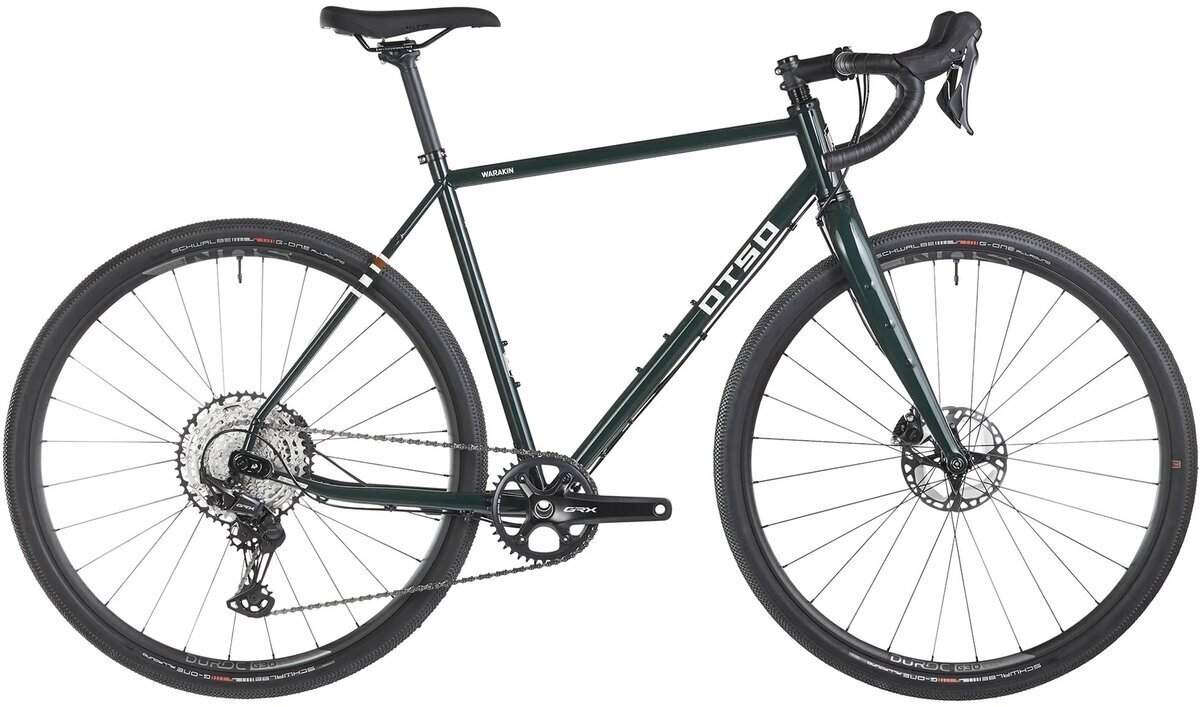

The Warakin versatile steel all-road bike that will carry its rider to any destination. It is designed for multi-surface rides, overnighters, gravel races, and commuting. Frame features include adjustable geometry; lots of mounts for cargo, racks, and fenders; clearance for 50mm tires; suspension-corrected geometry to run a suspension fork; and can be built with gears or single speed. No matter your riding plans, the Warakin will meet your needs for the road ahead.
This iteration of the Warakin comes equipped with Shimano's tried and True GRX 600 1x12 group. Note that most of the headsets, collars and hardware we received with this batch are silver, but may vary.
*Components may be different than shown in images. Call or come in to see the GRX 600 custom configuration we carry at this time.
| 49cm | 52cm | 54cm | 56cm | 58cm | 60m | |
|---|---|---|---|---|---|---|
| Recommended rider height | 5'0"-5'2" | 5'2"-5'4" | 5'4"-5'8" | 5'8"-6'0" | 6'0"-6'2" | 6'2"-6'5" |
| Recommended rider inseam | 27"-29" | 28"-30" | 30"-33" | 32"-34" | 33"-35" | 34"-37" |
| Effective top tube | 510mm | 530mm | 545mm | 565mm | 580mm | 600mm |
| Nominal head tube angle | 70° | 70.5° | 71° | 71.5° | 72° | 72° |
| Tuning Chip induced head/seat tube angle change | ±0.2° | ±0.2° | ±0.2° | ±0.2° | ±0.2° | ±0.2° |
| Head tube length | 87mm | 95mm | 115mm | 140mm | 165mm | 185mm |
| Nominal seat tube angle | 75° | 74.5° | 74° | 73° | 72.5° | 72° |
| Seat tube length | 470mm | 505mm | 530mm | 550mm | 570mm | 590mm |
| Bottom bracket drop | 68-72mm | 68-72mm | 68-72mm | 68-72mm | 68-72mm | 68-72mm |
| Chainstay length | 420-440mm | 420-440mm | 420-440mm | 420-440mm | 420-440mm | 420-440mm |
| Wheelbase | 1010 - 1030mm | 1017-1037mm | 1023-1043mm | 1028-1048mm | 1032-1052mm | 1046-1066mm |
| Trail | 72mm | 71mm | 70mm | 67.5mm | 65mm | 65mm |
| Fork offset | 47mm | 47mm | 47mm | 47mm | 47mm | 47mm |
| Rigid fork axle to crown length | 420mm | 420mm | 420mm | 420mm | 420mm | 420mm |
| Stack | 539mm | 549mm | 570mm | 596mm | 622mm | 641mm |
| Reach | 370mm | 378mm | 381mm | 383mm | 384mm | 392mm |
| Standover | 730mm | 760mm | 780mm | 800mm | 820mm | 840 mm |
Designed by the Otso engineering team, Waheela C frames are manufactured in one of the premiere carbon fiber factories in Taiwan and come with a 5 year limited warranty. All bikes are inspected and assembled at our headquarters in Minneapolis, MN USA.
Specs
| Frame | Otso custom butted 4130 Chromoly tubing with Tuning Chip™? dropout system |
|---|---|
| Fork | Lithic full carbon fork, 12mm through-axle |
| Headset | Wolf Tooth Precision Headset |
| Rims/Wheels | SunRingle G30 Expert wheels |
| Tires | Schwalbe G-One All Arounds 45MM |
| Crankset | Shimano GRX 600 40t, 170mm for 49, 52; 172.5mm for 54, 56; 175mm for 58, 60 |
| Chainwheel | Shimano SLX 12 Speed 10-51t |
| Bottom Bracket | Shimano english thread BSA, Ø68mm |
| Chain | Shimano HG-11X |
| Front Derailleur | Shimano GRX, 31.8mm clamp |
| Rear Derailleur | Shimano GRX 600, 12 speed |
| Shifters | Shimano GRX 600 mechanical, 12 speed |
| Handlebars | Lithic Corundum aluminum compact drop with 16° flare |
| Tape/Grips | Cork handlebar tape, black |
| Stem | 6061 aluminum |
| Brakes | Shimano GRX 600 hydraulic |
| Saddle | WTB Silverado |
| Seat Post | 6061 aluminum |
| Seat Binder | Wolf Tooth 31.8mm |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Racing Green / 52 | 210000179907 | 210000179907 |
| Racing Green / 54 | 210000179908 | 210000179908 |
| Racing Green / 58 | 210000179910 | 210000179910 |
| Racing Green / 60 | 210000179911 | 210000179911 |
