Otso Warakin Ti GRX 600
Details

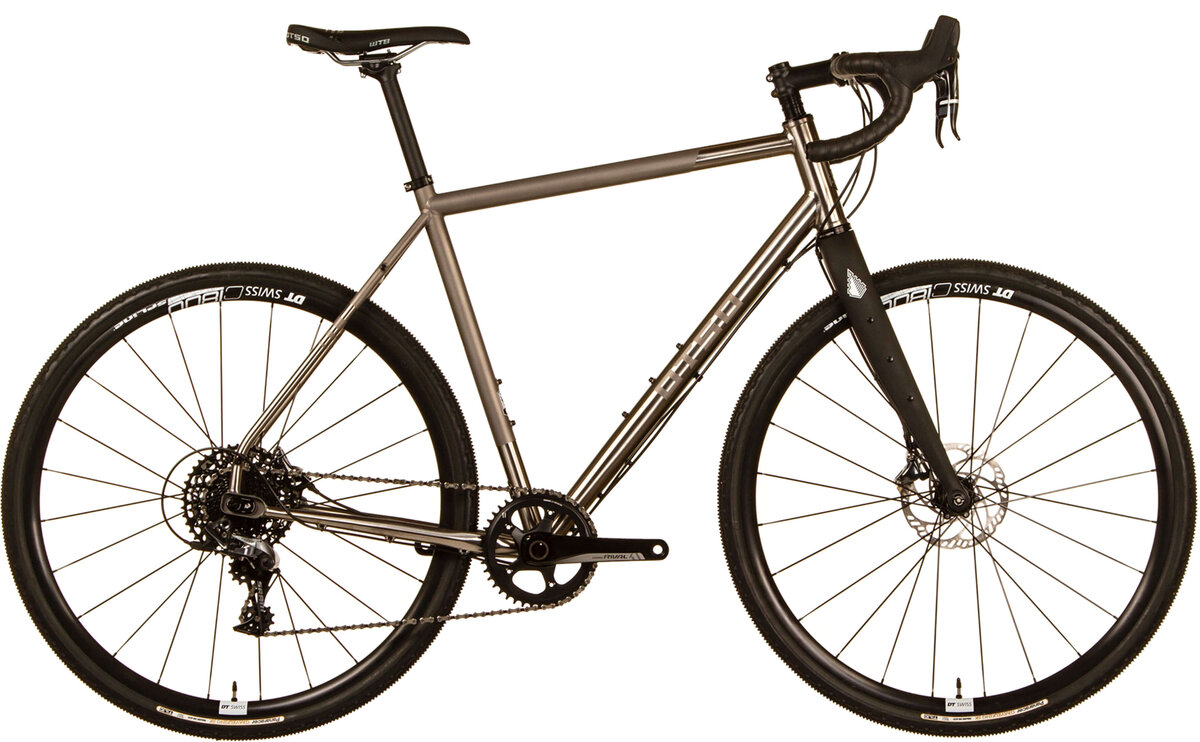

The Warakin Ti is an efficient, responsive, sprightly titanium bike that can handle any road in any weather. Using the progressive geometry of its Warakin Stainless predecessor, the Warakin Ti pairs unrivaled ride quality with the superior quality of titanium. It's a lightweight, durable, lively machine that will carry the rider to where they choose to go, while enjoying every pedal stroke along the way.
- 3Al/2.5V B338 grade 9 titanium
- Extra tire clearance that accommodates 29" x 2.1"
*Components may be different than shown in images. Call or come in to see the GRX 600 custom configuration we carry at this time.
| 49cm | 52cm | 54cm | 56cm | 58cm | 60m | |
|---|---|---|---|---|---|---|
| Recommended rider height | 5'0"-5'2" | 5'2"-5'4" | 5'4"-5'8" | 5'8"-6'0" | 6'0"-6'2" | 6'2"-6'5" |
| Recommended rider inseam | 27"-29" | 28"-30" | 30"-33" | 32"-34" | 33"-35" | 34"-37" |
| Effective top tube | 510mm | 530mm | 545mm | 565mm | 580mm | 600mm |
| Nominal head tube angle | 70° | 70.5° | 71° | 71.5° | 72° | 72° |
| Tuning Chip induced head/seat tube angle change | ±0.2° | ±0.2° | ±0.2° | ±0.2° | ±0.2° | ±0.2° |
| Head tube length | 87mm | 95mm | 115mm | 140mm | 165mm | 185mm |
| Nominal seat tube angle | 75° | 74.5° | 74° | 73° | 72.5° | 72° |
| Seat tube length | 470mm | 505mm | 530mm | 550mm | 570mm | 590mm |
| Bottom bracket drop | 68-72mm | 68-72mm | 68-72mm | 68-72mm | 68-72mm | 68-72mm |
| Chainstay length | 420-440mm | 420-440mm | 420-440mm | 420-440mm | 420-440mm | 420-440mm |
| Wheelbase | 1010 - 1030mm | 1017-1037mm | 1023-1043mm | 1028-1048mm | 1032-1052mm | 1046-1066mm |
| Trail | 72mm | 71mm | 70mm | 67.5mm | 65mm | 65mm |
| Fork offset | 47mm | 47mm | 47mm | 47mm | 47mm | 47mm |
| Rigid fork axle to crown length | 420mm | 420mm | 420mm | 420mm | 420mm | 420mm |
| Stack | 539mm | 549mm | 570mm | 596mm | 622mm | 641mm |
| Reach | 370mm | 378mm | 381mm | 383mm | 384mm | 392mm |
| Standover | 730mm | 760mm | 780mm | 800mm | 820mm | 840 mm |
Designed by the Otso engineering team, Waheela C frames are manufactured in one of the premiere carbon fiber factories in Taiwan and come with a 5 year limited warranty. All bikes are inspected and assembled at our headquarters in Minneapolis, MN USA.
Specs
| Frame | Warakin 3Al-2.5V B338 grade 9 titanium frame with internally butted front triangle |
|---|---|
| Fork | Lithic full carbon fork, 12mm through-axle |
| Headset | Wolf Tooth Precision Headset |
| Rims/Wheels | DT Swiss C 1800 SPLINE, 100x15mm front and 142x12mm rear |
| Tires | Panaracer Gravel King SK Tubeless 700x38 |
| Crankset | Shimano GRX 600, 46/30t: 170mm for 49, 52; 172.5mm for 54, 56; 175mm for 58, 60 |
| Chainwheel | Shimano HG700, 11-34t, 11 speed |
| Bottom Bracket | Shimano english thread BSA, Ø68mm |
| Chain | Shimano HG-11X |
| Front Derailleur | Shimano GRX, 31.8mm clamp |
| Rear Derailleur | Shimano GRX 810, 11 speed |
| Shifters | Shimano GRX mechanical, 11 speed |
| Handlebars | Lithic Corundum aluminum compact drop with 16° flare |
| Tape/Grips | Cork handlebar tape, black |
| Stem | 6061 aluminum |
| Brakes | Shimano GRX 600 hydraulic |
| Saddle | WTB Volt with Otso graphics, 142mm |
| Seat Post | 6061 aluminum |
| Seat Binder | Wolf Tooth 31.8mm |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| 58 | 210000158904 | 210000158904 |
