Praxis Works M30-BB30/PF30 68mm Road

Praxis Works M30-BB30/PF30 68mm Road
$75.00
Please select options Unavailable

Details

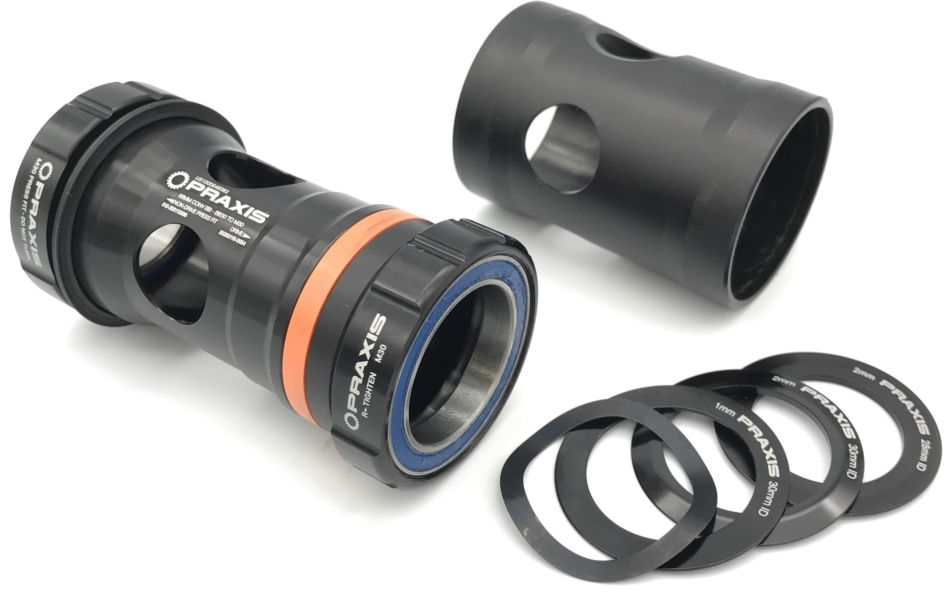

This is Praxis Works' M30 BB for installing a Praxis M30 road crank into a 68mm BB30 or PF30 road frame.

INTRUCTIONS

 MANUAL HERE
PRODUCT

M30 BB30/PF30 ROAD BB - For use with BB30/PF30 ROAD 68mm frame
See photos above and Video below!
BUY THIS IF :

You are installing a Praxis M30 alloy spindle road crank into 68mm width BB30 or PF30 road frame.
MEASUREMENT

68mm Width Road | ROAD ONLY
Helpful frame shell guide here
BEARINGS

Cartridge Steel or Ceramic
30mm DRIVE / 28mm Non-DRIVE
Ceramic version is Grade 5 / ABEC 5 rating
TOOL

This specific M30 BB has our collet design and requires a press tool/drift for installation along with a 2pk M30 Socket Tools or 2 M30 Wrench Tools. Please read the instructions carefully for installation.
MFG

Forged & machined heat-treated alloy cups
AVG. WEIGHT

130g
NOTE

- Praxis Collet Design
- This BB cannot be used for MTB Cranks
- Frame shell cannot have any inner shell obstructions (like cable guides/screws) that prevent BB from installing.
- Praxis M30 bottom brackets have a 30mm Drive and a 28mm NonDrive Bearing. These are specifically made for use with our Praxis M30 spindles. A drive-side wave washer is used for preload of the bearings.
- We also offer an M30 Bearing Rebuild Kit here if or when you want to refresh the bearings

Praxis warrants components to be free from defects in materials or workmanship for a period of 2 years after original purchase to the original owner.

However, there are limitations such as normal wear and tear…as “nothing lasts forever” so please read their full Warranty.

Videos

M30-BB30/PF30 - Unboxing & Info

Part Numbers

UPC MPN Store SKU
854053003880 68-4001R 210000074945
