Revelate Designs Ripio Frame Bag - 2022

Revelate Designs Ripio Frame Bag - 2022
$185.00
Size: Select size
Please select options Unavailable

Details

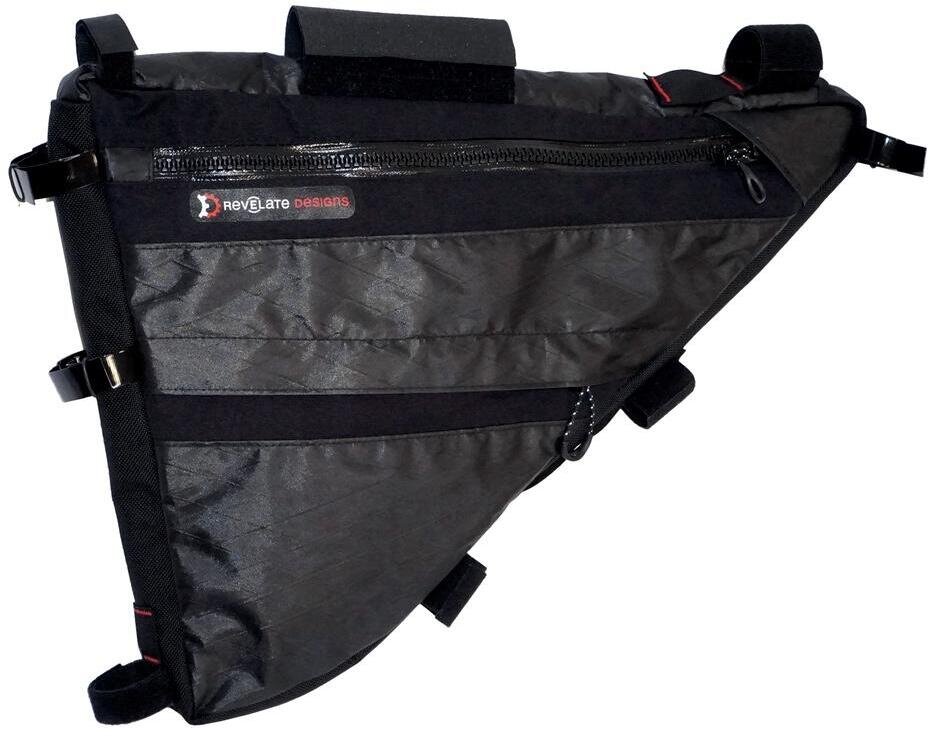

If miles upon miles of open dirt roads are your calling, the Ripio® frame bag will haul your stuff. The Ripio is the full-frame solution for your road, gravel or touring bike. With geometry optimized for frames with tall top tubes & head tubes, the Ripio fits a huge range of bikes and is packed with features that make use of the larger frame space road geometry provides.

  • Zipstretch ™ construction - Pairs a bomber, wetsuit style molded-tooth zipper with our exclusive stretch Cordura panels that reduce zipper stress when closing bag
  • X-Pac panels that are two times as abrasion resistant as standard VX material
  • Industry leading #10 molded tooth zippers with urethane coated tape are basically impervious to dirt and grit that destroy more commonly used water resistant coil zippers
  • Exit port in main compartment for hydration tube or wires
  • Zippered left side pocket with dividers that organizes small items
  • Lower zippered compartment with horizontal divider that opens to create one large compartment
  • Additional vertical divider in top section of LG & XL sizes to avoid leg interference
  • Urethane coated webbing for easy cleaning, movable velcro one-wrap attachments for frame fitting
  • Front top tube attachments accommodate top tube packs
  • Made in the USA with domestic and imported materials

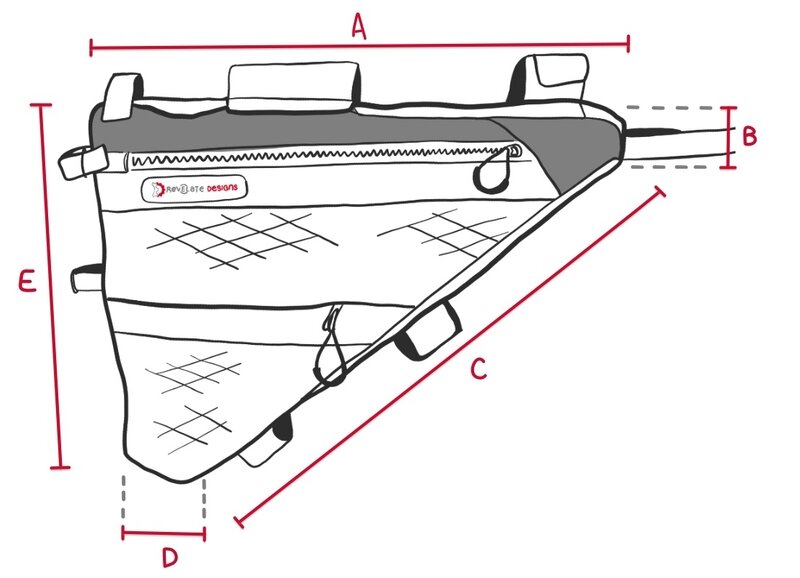

The Ripio comes in four sizes. Dimensions shown should be interpreted as a minimum fit size. As a rule of thumb - size down if on the fence. Online schematics of bike geometry typically do not detail the measurements necessary to determine fit. We recommend an old fashion ruler for this part.

Dimensions (in.)
  SM MD LG XL
A 16.50 18.50 19.50 20.75
B 1.50 2.50 2.75 4.00
C 16.50 17.00 19.00 21.00
D 2.50 2.50 3.50 2.50
E 12.75 14.00 16.00 18.50
Dimensions (mm.)
  SM MD LG XL
A 419 470 496 527
B 38 64 70 102
C 419 432 483 534
D 64 64 89 64
E 323 356 407 470

Weight:

SM: 8 oz / 227 g
MD: 14 oz / 397 g
LG: 16 oz / 454 g
XL: 18.5 oz / 425 g

Volume:

SM: 305 in³ / 5 L
MD: 385 in³ / 6.3 L
LG: 470 in³ / 7.7 L
XL: 550 in³ / 9 L

Materials:

Dimension Polyant VX-21 with abrasion resistant finish; TPU laminated stretch woven Cordura; 1050 denier domestic ballistics nylon; 420 denier diamond ripstop lining with full perimeter foam padded tube sections.

Videos

Revelate zippers are awesome!

Part Numbers

Option UPC MPN Store SKU
Medium 850009042521 RD-050-585 210000162784
Large 850009042538 RD-050-586 210000153074
