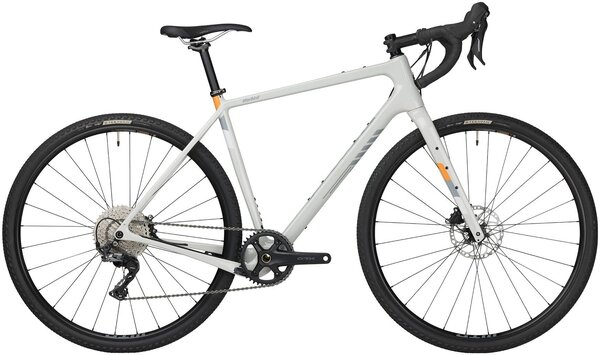

Salsa Warbird Carbon GRX 600
Details
Warbird C GRX 600 1x is a carbon gravel bike designed to win races, but it’s built for much more than just speed. The compliant carbon frame with our gravel bike geometry and Class 5™ Vibration Reduction System (VRS) is comfortable on unmaintained roads. Extra cargo mounts on the fork, top tube, and down tube allow you to push more miles between resupplies or take light and fast bikepacking journeys. Dual wheel size compatibility gives you options for dialing in ride setups based on the course at hand. Shimano’s acclaimed GRX 600 1x group tops it all off with smooth and predictable performance on roads that are anything but. There are thousands of miles of backroads waiting to be explored—let Warbird be your guide.
Size | 49cm | 52.5cm | 54.5cm | 56cm | 57.5cm | 59cm | 61cm |
---|---|---|---|---|---|---|---|
A. Effective Top Tube (mm) | 499 | 525 | 545 | 560 | 575 | 590 | 610 |
B. Stand Over (mm) | 670 | 714 | 744 | 770 | 786 | 808 | 831 |
C. Reach (mm) | 359 | 367 | 371 | 380 | 390 | 399 | 407 |
D. Stack (mm) | 521 | 550 | 569 | 588 | 607 | 626 | 644 |
E. Total Seat Tube Length (mm) | 390 | 440 | 475 | 510 | 520 | 545 | 570 |
F. Headtube Length (mm) | 90 | 120 | 140 | 160 | 180 | 200 | 220 |
G. Headtube Angle | 70.5° | 70.8° | 70.8° | 70.8° | 70.8° | 70.8° | 70.8° |
H. Seat Tube Angle | 75° | 74° | 73° | 73° | 73° | 73° | 72.5° |
I. BB Drop (mm) | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
K. Chainstay Length (mm) | 430 | 430 | 430 | 430 | 430 | 430 | 430 |
L. Fork Length Axle to Crown (mm) | 405 | 405 | 405 | 405 | 405 | 405 | 405 |
M. Fork Offset (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
N. Wheelbase (mm) | 996 | 1012 | 1023 | 1038 | 1054 | 1070 | 1085 |
Crank Arm Length (mm) | 165 | 175 | 180 | 180 | 180 | 180 | 180 |
Handlebar Width (mm) | 380 | 400 | 420 | 440 | 460 | 460 | 460 |
Recommended Rider Height | 142–157cm | 155–165cm | 162–173cm | 170–180cm | 178–188cm | 185–193cm | 190cm–UP |
Stem Length (mm) | 70 | 70 | 80 | 90 | 90 | 100 | 110 |
Specs
Frame | Warbird Carbon |
---|---|
Fork | Waxwing |
Wheels | WTB EZR i23 TCS rim, 28h |
Rims | WTB ST i23 TCS rim, 28h |
Hubs | Shimano RS470 12 x 142 mm hub -OR- Novatec D982TSB-CL-X12 |
Tires | Teravail Cannonball 700c x 42 mm, tubeless compatible, Durable casing |
Crankset | Shimano GRX RX600, 40t -OR- FSA Omega MegaExo, 40t |
Shifters | Shimano GRX RX600 |
Rear Derailleur | Shimano GRX RX812 |
Cassette/Freewheel | Shimano M5100, 11–42t, 11-speed |
Chain | Shimano HG601 |
Brakes | Shimano GRX RX400 brake |
Rotors | Shimano RT64 rotors (Center Lock, 160 mm) |
Handlebars | Salsa Cowbell |
Tape/Grips | Anti-Slip Silicone handlebar tape |
Stem | Salsa Guide |
Headset | Cane Creek 40 |
Seatpost | Salsa Guide |
Saddle | WTB SL8 Medium Steel SL |
Pedals | Sold separately |
* Subject to change without notice.
