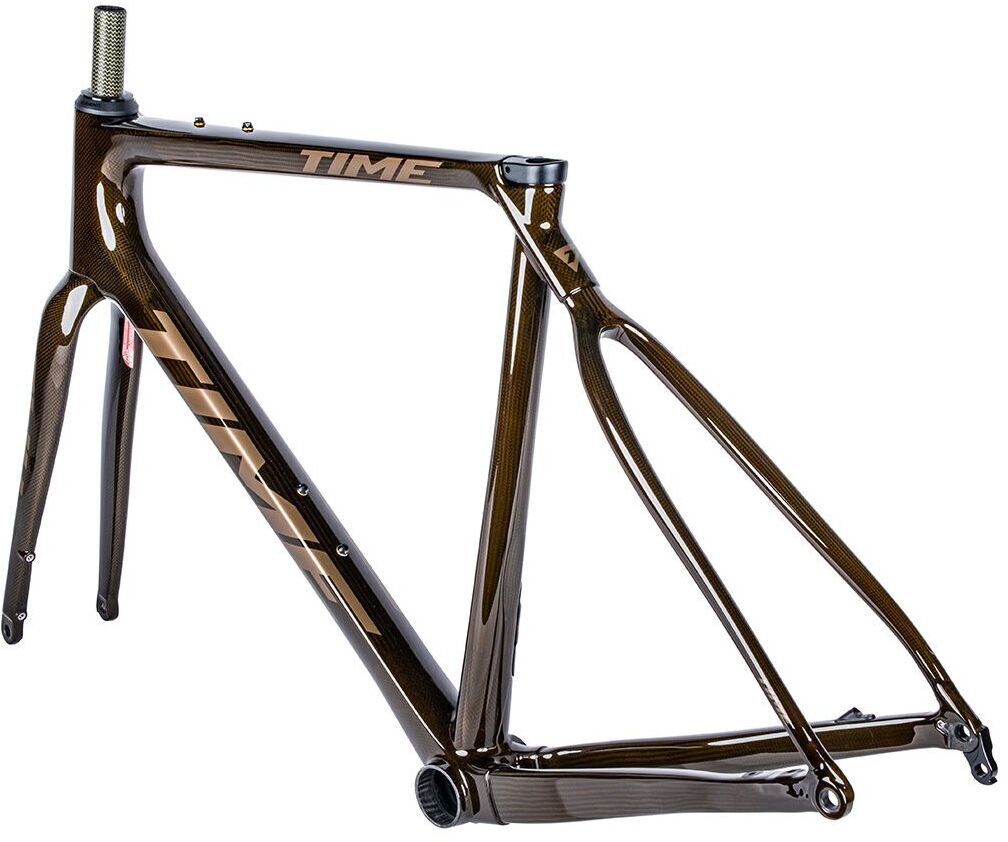

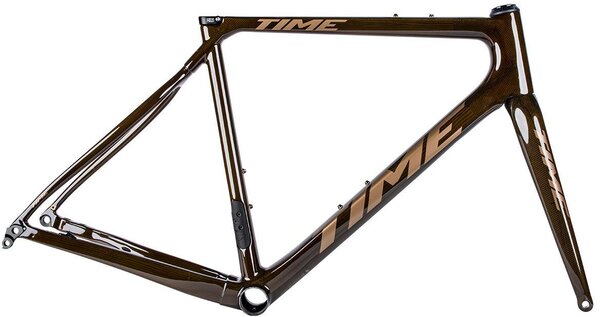

Time ADHX Frameset

Time ADHX Frameset
  • Color: Gloss Amber
  • Color: Gloss Amber
  • Color: Gloss Amber
  • Color: Gloss Forest
$4,000.00
Color:
Size: Select size
Please select options Unavailable
This item is not permitted to be shipped, however it can be purchased online and picked up at one of our stores.

Details

TIME's debut Allroad bike has quickly notched several firsts ‚our ADHX (Alpe d'Huez X) is the first of its kind to incorporate Bio-Based Dyneema®, the World's Strongest Fiber, to build a better-performing machine. It's the first to utilize braided carbon structure (BCS) manufacturing, a TIME exclusive that outperforms traditional carbon prepreg construction in almost every way by incorporating several types of fiber into each multidirectional braid. The ADHX is first in quality and tolerance control thanks to our highly accurate resin transfer molding (RTM) process and is manufactured entirely in the EU using one of the most sustainable manufacturing processes in the industry. TIME's first performance allroad offering is more than a cursory nod in many ways. The arrival of the ADHX makes it the clear leader in a very crowded field with a pedigree to spare, an iconic look, and an attitude eager to make a splash.

• DEDA S DCR Headset for Semi & Fully-Integrated Cockpits
• Front and Rear Thru Axles
• Alloy Bottle Bolts
• Integrated Seatpost Clamp
• Derailleur Hangers
• Single Cover and Drivetrain Conversion Kit
FRAME MATERIAL
BCS Carbon Fiber - Dyneema® Enhanced
THRU AXLES
12x120x1.5mm Pitch F, 12x159x1.5 Pitch R
SIZES
XS, SM, MD, LG, XL
SEATPOST DIAMETER
ø 27.2mm
FORK STEERER TUBE
Tapered 1-1/8" to 1-1/2"
SEATPOST CLAMP
Proprietary ADHX Alloy
HEADSET BEARINGS
Top and Bottom 1-1/2" (with internal routing compression ring)
SHIFTING
Compatible with Electronic and Standard Shifting Systems
WHEEL SIZE
700c
FRONT DERAILLEUR
1X and 2X Compatible with Integrated Single Cover and Drivetrain Conversion Kit
MAXIMUM TIRE WIDTH
  • 700 x 28-38c Road Tires (Slick or File Tread)
  • 700 x 32-35c Cross Tires (Low Profile Knob)
  • (not all tire/rim combinations fit with adequate clearance - check for appropriate fit)
REAR DERAILLEUR
Standard Mount
BOTTOM BRACKET
PF BB386
BRAKE TYPE
Front and Rear Flat Mount Disc
DISC HUB STANDARD
12x100mm F, 12x142mm R
ROTOR SIZE
140/160mm with Adapter

Part Numbers

Option MPN Store SKU
Gloss Amber / Large 75242225 V1800L 210000175413
Gloss Forest / Medium 210000183452 210000183452
