Details

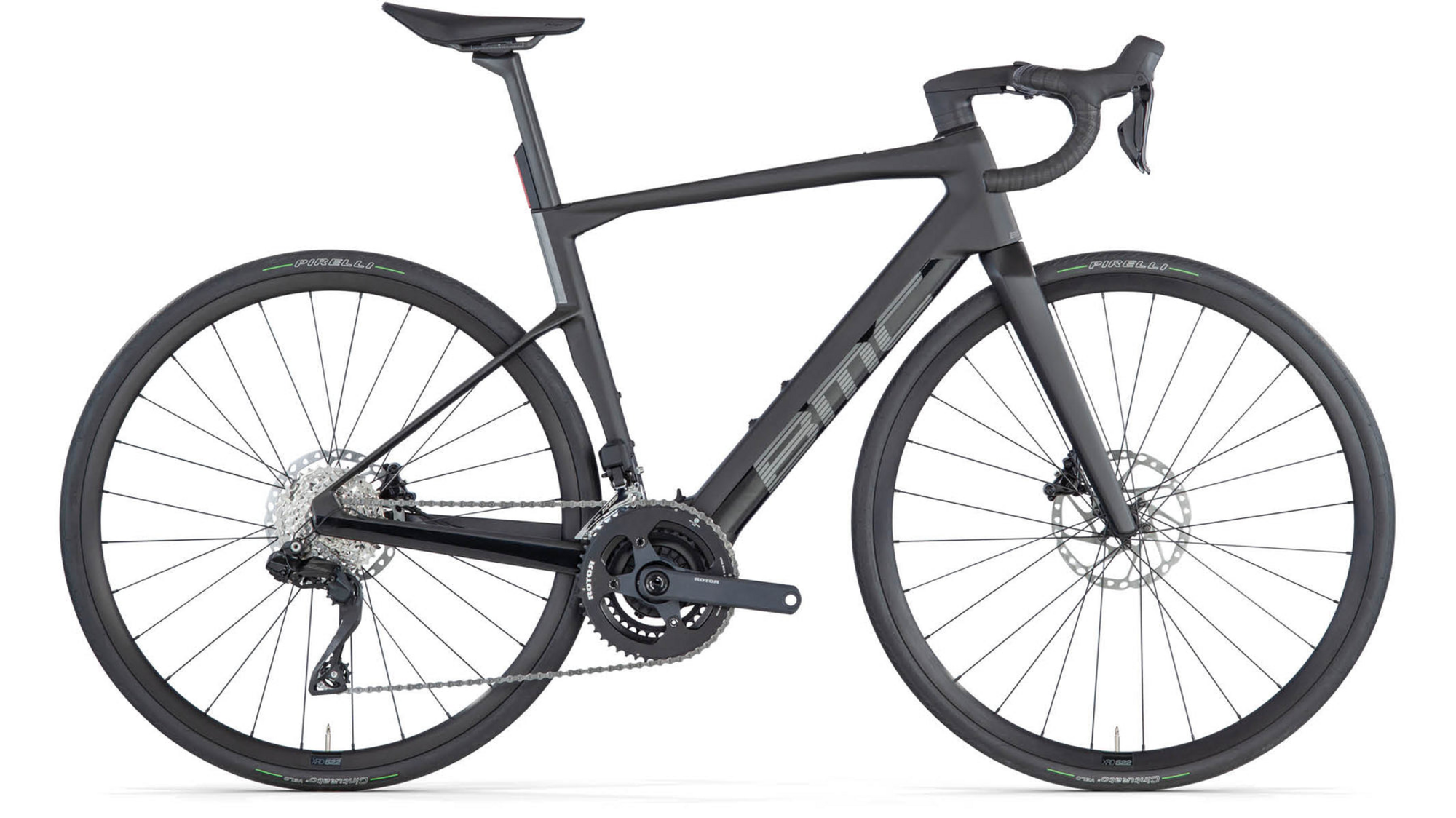

Continuing the lineage of the Roadmachine, the 01 AMP THREE allies a technically refined design with the exceptionally light and quiet TQ-HPR50 system, that’s seamlessly integrated into the Premium Carbon frame. We’ve taken the smooth-shifting Shimano 105 Di2 groupset and matched it with our ICS2 system, XRD-522 wheels, and ultra-modern integration. In short, all the performance details needed to make every road your reality.
Hidden Power
Roadmachine 01 AMP extends your journey thanks to the revolutionary TQ-HPR50 drive unit. Powerful, light and compact, it is seamlessly integrated into the frame for an uncompromised look and natural ride feeling.
Fast and Forgiving
The most capable version of our Tuned Compliance Concept Endurance technology paves the way for a fast and forgiving ride. Take the edge of the roughest roads to push harder and ride further with the ultimate balance between comfort and performance.
Safety First
Light up your ride with integrated safety features. A custom BMC backlight is connected directly to the battery for long life and the computer mount offers easy installation of a front light.
ICS2 Stem
ICS2, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Reach (mm) | 370 | 379 | 383 | 388 | 393 | 398 |
Stack (mm) | 525 | 550 | 570 | 595 | 620 | 645 |
Bar Drop (mm) | 125 | 125 | 125 | 125 | 125 | 125 |
Bar Reach (mm) | 70 | 70 | 70 | 70 | 70 | 70 |
Bar Width (mm) | 400 | 420 | 420 | 420 | 420 | 440 |
BB Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
Crank Length (mm) | 170 | 170 | 170 | 170 | 170 | 170 |
Fork Length (mm) | 380 | 380 | 380 | 380 | 380 | 380 |
Fork Rake (mm) | 50 | 50 | 45 | 45 | 45 | 45 |
Front Center (mm) | 579 | 596 | 594 | 607 | 620 | 633 |
Head Tube (mm) | 112 | 138 | 154 | 181 | 207 | 233 |
Head Tube Angle | 71.4 | 71.4 | 72.2 | 72.2 | 72.2 | 72.2 |
Rear Center (mm) | 420 | 420 | 420 | 420 | 420 | 420 |
Seat Angle | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
Seat Tube (mm) | 420 | 460 | 500 | 525 | 545 | 575 |
Seatpost Length (mm) | 230 | 280 | 280 | 280 | 280 | 330 |
Seatpost Offset (mm) | 15 | 15 | 15 | 15 | 15 | 15 |
Standover Height (mm) | 728 | 755 | 786 | 810 | 829 | 850 |
Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
Stem Length (mm) | 90 | 90 | 100 | 110 | 110 | 110 |
Top Tube (mm) | 519 | 535 | 544 | 556 | 568 | 581 |
Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
Wheelbase (mm) | 987 | 1005 | 1002 | 1015 | 1028 | 1041 |
Size | Rider Height | Rider Height (in) |
---|---|---|
47 | < 162 | < 5'3" |
51 | 162 - 174 | 5'3" - 5'8" |
54 | 172 - 180 | 5'7" - 5'11" |
56 | 178 - 186 | 5'10" - 6'1" |
58 | 184 - 192 | 6'0" - 6'3" |
61 | > 190 | > 6'3" |
Specs
Motor | TQ-HPR50 Drive Unit |
---|---|
Pedals | Sold Separately |
Battery | TQ 360 Wh Battery |
Charger | TQ HPR-50 4A Charger |
Controller/Display | TQ Display | 2" O-LED | Bluetooth / ANT+ |
Fork | Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Flat Mount Disc | 12x100mm Thru-Axle |
Hubs | XRD-522 |
Rims | XRD-522, Tubeless Ready, 25 mm |
Stem | BMC ICS2 - Integrated Cockpit System Technology |
Chain | SHIMANO CN-M8100 12spd |
Frame | Roadmachine 01 AMP Premium Carbon with Tuned Compliance Concept Endurance | Integrated Battery | Integrated Rear Light | Internal Cable Routing | ICS Technology Stealth Cable Routing | Fender Mounts | Flat Mount Disc | 12x142mm Thru-Axle |
Tires | Pirelli Cinturato Velo TLR, 32mm |
Brakes | SHIMANO 105 BR-R7170 |
Saddle | Fizik Argo Tempo R5 (150mm) |
Wheels | XRD-522, Tubeless Ready, 25 mm |
Crankset | Rotor eVegast 50-34T |
Seatpost | Roadmachine 01 AMP Premium Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible |
Shifters | SHIMANO 105 Di2 ST-R7170 12spd |
Handlebars | BMC RAB 02, Ergo Top Shape, Compact Bend |
Brake Levers | SHIMANO 105 BR-R7170 |
Rear Derailleur | SHIMANO 105 Di2 RD-R7150 12spd |
Front Derailleur | SHIMANO 105 Di2 FD-R7150 |
Accessories & Extras | Integrated Rear Light |
Cassette/Freewheel | SHIMANO CS-HG710 12spd 11-36T |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Carbon/Metallic Grey / 61cm / 700c | 7630027888089 | 30002758 | 210000174318 |
