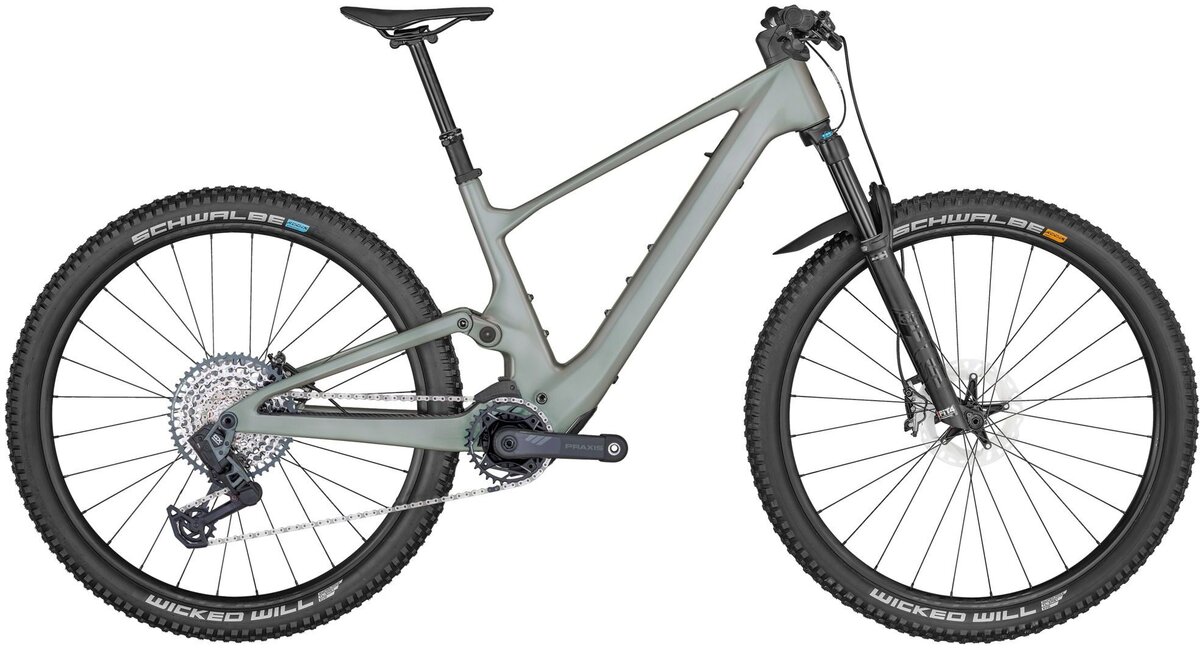

Scott Lumen eRIDE 900 TR

Scott Lumen eRIDE 900 TR
$10,065.00
Color:
Grey
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up at one of our stores.

Details

An E-MTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino's speed.

  • Lumen Carbon HMX Frame
  • FOX 34 Float Rhythm 130mm Fork
  • FOX Nude 5T EVOL, TwinLoc, 130mm
  • SRAM GX Eagle AXS Transmission
  • Shimano XT 4 Piston Disc Brakes
  • Syncros Silverton 1.5 TR Wheels
  • Syncros Silverton 1.5 TR Wheels
  • FOX Dropper Post, Syncros CF Parts

Geometry of SCOTT Lumen eRIDE 900 TR Bike

A HEAD TUBE ANGLE 65.5 ° 65.5 ° 65.5 ° 65.5 °
B HEAD TUBE LENGTH 110.0 MM 110.0 MM 120.0 MM 135.0 MM
C TOP TUBE HORIZONTAL 562.0 MM 589.0 MM 620.0 MM 645.0 MM
D STANDOVER HEIGHT 765.0 MM 767.0 MM 780.0 MM 800.0 MM
E BB OFFSET -38.5 MM -38.5 MM -38.5 MM -38.5 MM
F BB HEIGHT 338.5 MM 338.5 MM 338.5 MM 338.5 MM
G WHEEL BASE 1,176.0 MM 1,206.0 MM 1,240.0 MM 1,270.0 MM
H BB CENTER TO TOPTUBE CENTER
I BB CENTER TO TOP OF SEATTUBE 415.0 MM 440.0 MM 480.0 MM 520.0 MM
J SEAT ANGLE 76.8 ° 77.0 ° 77.2 ° 77.5 °
K CHAINSTAY 450.0 MM 450.0 MM 450.0 MM 450.0 MM
L REACH 416.0 MM 446.0 MM 476.0 MM 501.0 MM
M STACK 615.0 MM 615.0 MM 625.0 MM 638.0 MM
N STEM LENGTH 50.0 MM 60.0 MM 70.0 MM 70.0 MM
0 TRAIL 126.0 MM 126.0 MM 126.0 MM 126.0 MM
P FORK LENGTH 540.0 MM 540.0 MM 540.0 MM 540.0 MM
Q MAXIMUM SEATPOST INSERTION 150.0 MM 175.0 MM 215.0 MM 255.0 MM
R CRANK LENGTH 170.0 MM 170.0 MM 175.0 MM 175.0 MM

Specs

Frame Carbon HMX Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Fork FOX 34 Float Performance Elite Air FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle 44mm offset / tapered steerer / Reb. Adj. / Lockout 130mm travel
Headset Syncros - Acros Angle adjust & Cable Routing HS System Stainless +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Rear Shock FOX NUDE 5T EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Reb. Adj. Travel 130-90-Lockout / T165X45mm
Rims/Wheels Syncros Silverton 1.5-30 CL F: 15x110mm R: 12x148mm 30mm Tubeless ready rim 28H / XD Driver Syncros Axle w/Removable Lever with 6mm Allen T30 and T25 Tools
Tires Schwalbe Wicked Will 29x2.4" EVO Super Race / TLE / 67EPI / Addix Speed Soft
Crankset FSA Carbon crankset / 175mm / 34T
Chainwheel Scott custom spider / SRAM Eagle Transmission 34T chainring
Chain SRAM CN GX Eagle Transmission
Rear Derailleur SRAM GX Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
Rear Cogs SRAM GX Eagle XS 1275 Transmission 10-52
Shifters SRAM GX Eagle AXS Rocker Controller
Handlebars Syncros Fraser iC SL DC Carbon 0° rise / back sweep 8° / mini Rise / 760mm Syncros Performance XC lock-on grips
Brakes Shimano XT / BR-M8120 4 Piston
Saddle Syncros Tofino 1.5 Regular Titanium rails
Seat Post FOX Transfer Dropper Post 31.6mm / S size 125mm / M size 140mm L size 150mm / XL size 175mm
Accessories & Extras SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Grey / Small 196530175049 420650-006 210000170532
Grey / Medium 196530175056 420650-008 210000170533
Grey / Large 196530175063 420650-010 210000170509
Grey / X-Large 196530175070 420650-012 210000170508
