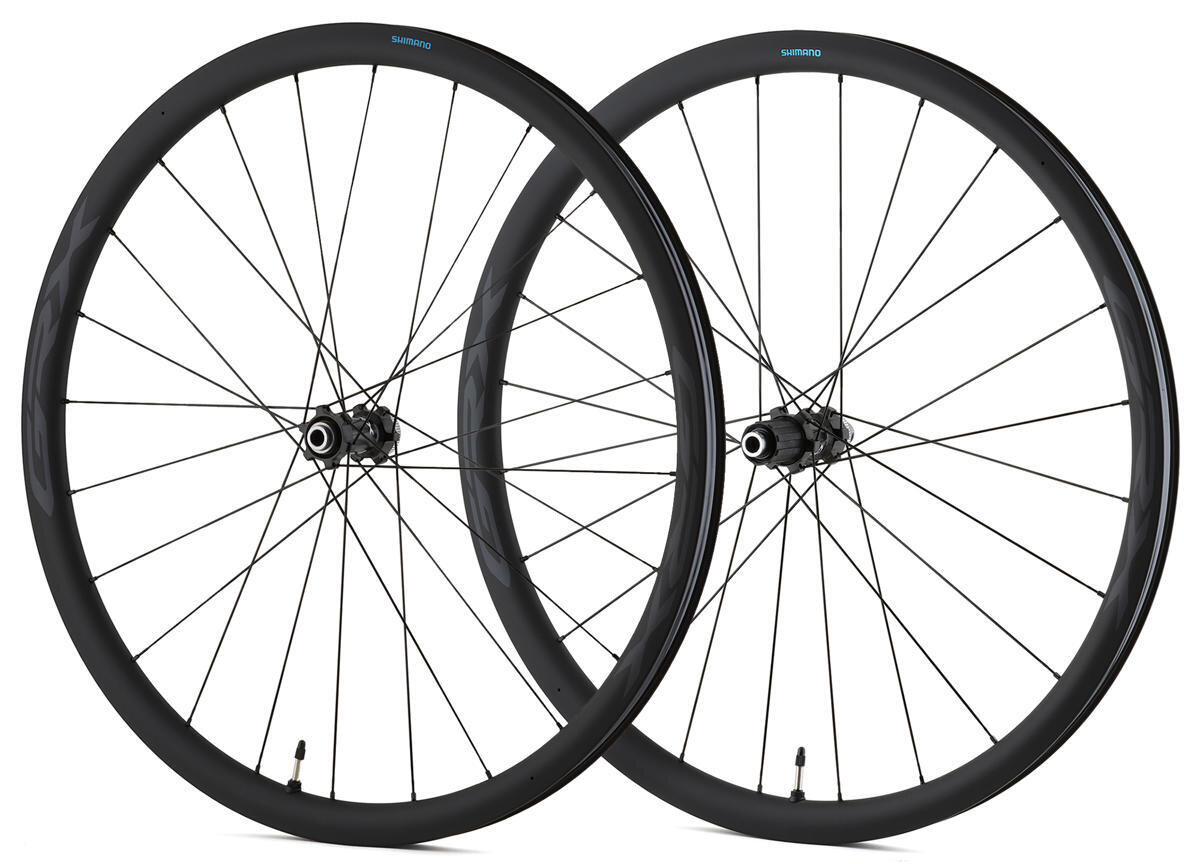

Shimano GRX WH-RX870 Carbon Wheelset 700c 12x100/142mm TL

Shimano GRX WH-RX870 Carbon Wheelset 700c 12x100/142mm TL
Please select options Unavailable


The Shimano GRX RX870 wheels are designed to exponentiate the gravel experience, helping riders go faster, further, and have more fun. Wide gravel tires need a wide rim to maintain lateral tire stability at the low air pressures that we all love to run. Shimano studied this complicated relationship between tire size, rim width, air pressure, and tire lateral rigidity to optimize the GRX rim width for 32-50c tires. In addition, they pursued the best balance of rim weight, strength, and profile in order to deliver an exceptional gravel wheelset.

- Clean design that can be easily matched to any bike
- First gravel specific Shimano carbon wheel to date
- 32mm height full carbon rim profile
- 25mm internal rim width optimized for gravel tires (32-50c)
- Tubeless technology increase comfort and control while reducing the chances of flats
- Centerlock disc brake
- Shimano 11 & 12 speed road compatible

  • Wheel Size: 700c
  • ISO Diameter (ETRTO): 622
  • Position: Set
  • Tire Type: Tubeless (Clincher)
  • Brake Type: Disc Brake (Centerlock)
  • Hub: Shimano
  • Axle Type: Thru Axle
  • Hub Spacing: 12 x 100mm, 12 x 142mm
  • Drive Type (Rear Hub): Shimano/SRAM (11/12 Speed HG)
  • Rim: RX870
  • Rim Width: 25mm (Internal), 30.7mm (External)
  • Valve: Presta
  • Spoke Count: 24H
  • Spoke Type: J-Bend
  • Material: Carbon
  • Color: Black
  • Weight: 1492g (w/ Tubeless Tape & Valves)

Part Numbers

192790223711 EWHRX870LFERED70 210000159390
